UV Printer for Mobile Phone Cases NC-UV0406-VI
In Stock
Call for Price
Printing size: 400mm*600mm
Printing mode: CMYK＋W
Description
NEW UV Printer for Mobile Phone Cases NC-UV0406-VI
Major Advantages for UV Printer NC-UV0406-VI
One machine can be used for multiple purposes, supporting both flat and cylindrical printing modes.
The printing height is 0-180mm to meet the printing needs of different products.
Equipped with 2 Epson I1600-U1 print heads, the accuracy can reach up to 1200dpi, white color can be produced at the same time, and the printing quality is exquisite
The body is compact, does not take up space, and is suitable for personalized customization.
A2 printing format, built-in air suction platform, making printing smoother.
Product Details for Mobile Phone Cases UV Printer NC-UV0406-VI
 |

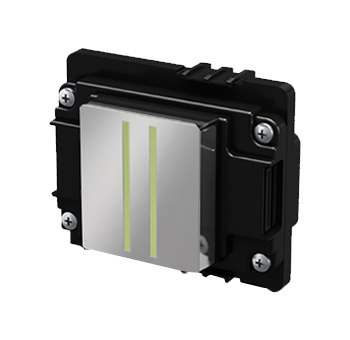

Epson I1600-U1 Print head. UV Printer for Mobile Phone Cases equipped with 2 Epson I1600-U1 print heads, the accuracy can reach up to 1200dpi, white color can be produced at the same time, and the printing quality is exquisite |
 |

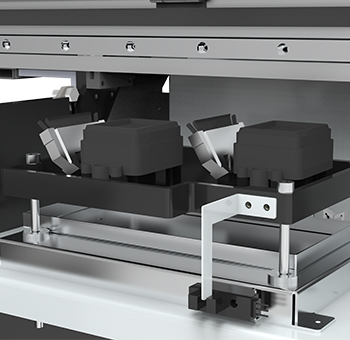

Lifting capping station design. The design of the lifting ink station accurately controls the position of the head sealing and comprehensively protects the print head. |
 |

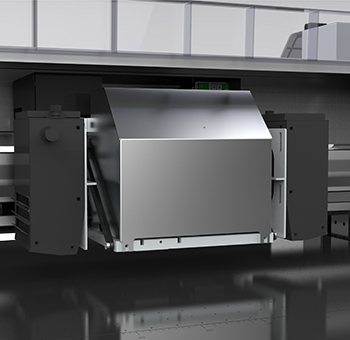

Intelligent anti-collision system UV Printer NC-UV0406-VI. The ink truck is equipped with an intelligent touch and anti-collision sensing device. The ink truck automatically stops after a touch, protecting the print head and printing materials. |
 |
Smart control panel UV printer. The control panel has various functions and the display is simple and easy to understand. |
 |

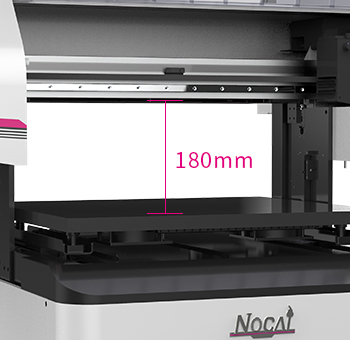

180mm print height. The printing height of 0-180mm can meet the printing needs of products of different thicknesses. It is suitable for a variety of product specifications and materials, with a wide range of applications. |
 |

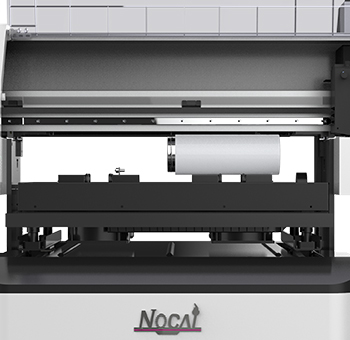

One machine for multiple purposes. An electric cylinder jig is installed to realize 360-degree rotation printing, and cylinder products such as mugs and thermos cups can be printed to meet diverse personalized needs. |
Parameter for Mobile Phone Cases UV Printer NC-UV0406-VI
| Print head | Nozzle spray force range | Print size |
| Epson I1600-U1*2 | 2-3mm | 400mm*600mm |
| Print height | Print version | Print mode |
| 0-180mm | White and color print at same time | CMYK＋W |
| Print resolution | Printer dimension | N.W. |
| 720*600dpi / 720*900dpi / 720*1200dpi | 1443mm*850mm*760mm | 118KG |
| Packing size | G.W. | Rip software |
| 1.65m*1.03m*0.96m | 190KG | FlexiPRINT MiniServer 19 Nocai Edition |
| Print speed | Graphic format | Connection method |
| 0.93-4.53 square/h | Tiff,Jpg,Eps,Pdf,Png,AI | cable |
| Power | Rated power | Working environment |
| AC220/110V±10，50HZ~60HZ | 143W | Temperature:20-28 Humidity:35%-65% |
| Operating conditions | Ink type | Machine bases need to be self-provided |
| Avoid dusty environments,Avoid direct sunlight | Environmentally friendly UV curing ink | 860mm*720mm*550mm |
Description for Mobile Phone Cases UV Printer NC-UV0406-VI
NC-UV0406 is the first small digital inkjet flatbed printer with independent board in China, which defined printing format of 60*40cm.
The Nocai small digital inkjet UV printer has been iterated to the sixth generation. It has the characteristics of strong stability, compactness, space-saving, and diversified application scenarios. It is very suitable for personalized customization, such as entrepreneurship, on-site DIY customization, cultural creation, etc. The formats are all very appropriate.
Additional information
| Weight | 118 kg |
|---|---|
| Dimensions | 150 × 85 × 76 cm |
